BOYA

Features：

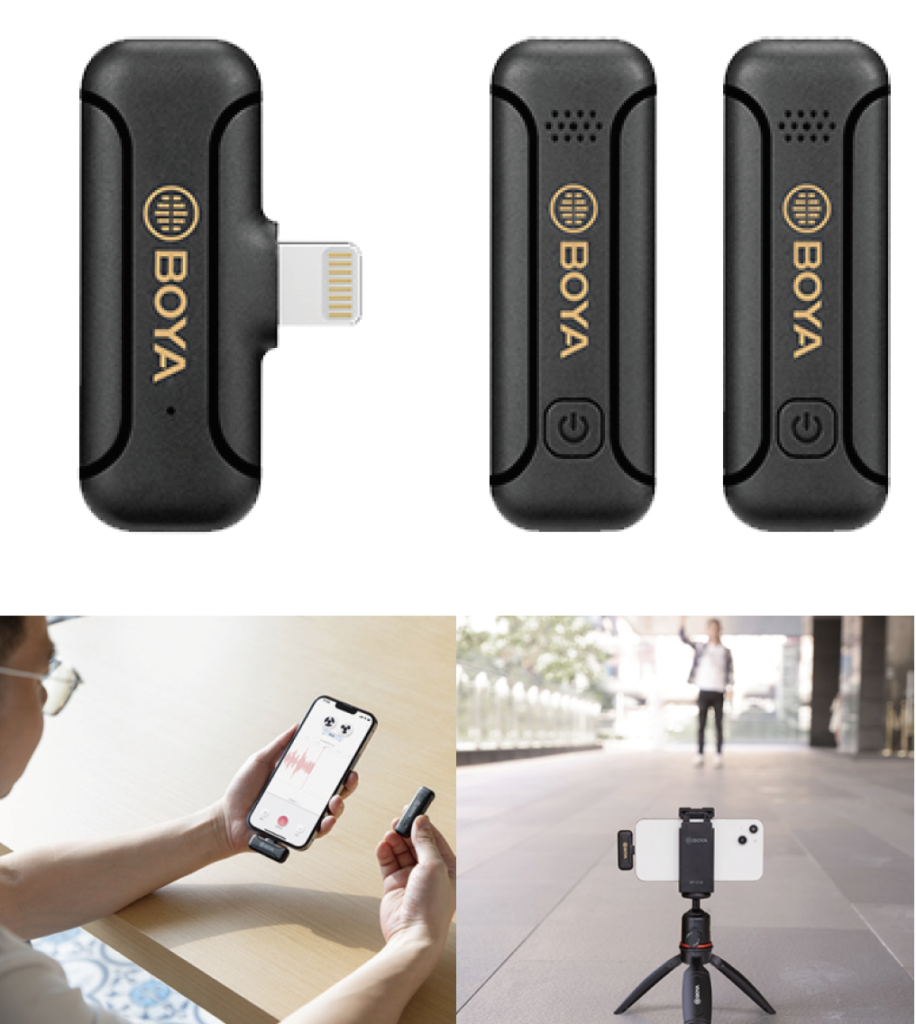

• 2.4GHz dual-channel wireless microphone system
• Ultracompact and portable
• Compatible with Apple iOS devices
• Omnidirection built-in mic for 360° sound pickup
• Selectable noise cancellation
• Automatic pairing & plug and play
• RXD’s Lightning port supports charging for external devices during use
• TX’s built-in rechargeable battery provides up to 10-hour run time
• 50m operating range

Specifications :

• Transmission Type : 2.4GHz
• Polar Pattern : Omnidirectional
• Frequency Response : 20Hz-16kHz
• SNR : 77dB
• Sensitivity : -42dB
• Sampling Rate : 48kHz
• Bit Depth : 16bit
• Transmission Range : 50m(without obstacle)
• RF Output Power : 6dbm
• TX’s Battery Life : 10 hours
• Battery Capacity : 95mAh
• Charging Port : USB-C
• Dimensions :
• TX : 52×17.5×15.6mm
• RXU/RXD : 46×26.2×9mm
• Weight : TX : 8.5g(0.30 oz), RXU/RXD : 5g(0.18 oz)

Features：

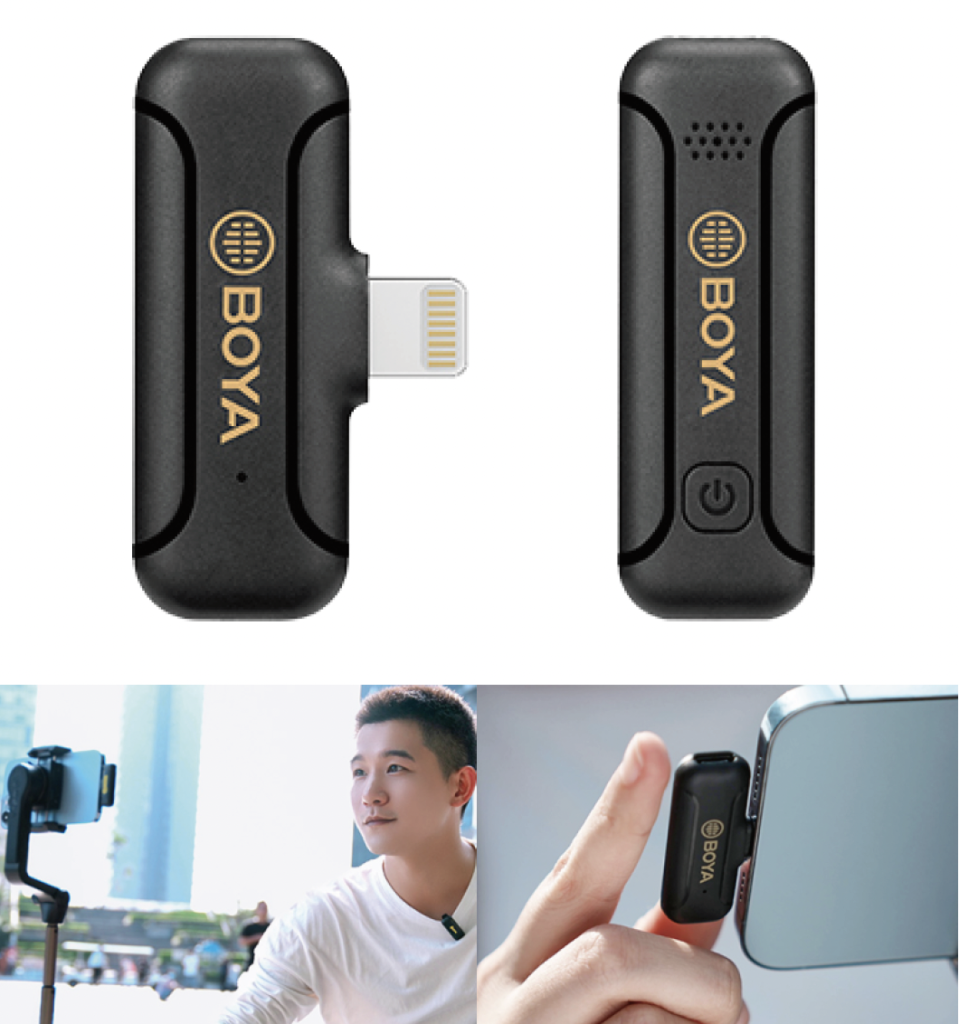

• 2.4GHz wireless microphone system
• Ultracompact and portable
• Compatible with Apple iOS devices
• Omnidirection built-in mic for 360° sound pickup
• Selectable noise cancellation
• Automatic pairing & plug and play
• RXD’s Lightning port supports charging for external devices during use
• TX’s built-in rechargeable battery provides up to 10-hour run time
• 50m operating range

Specifications :

• Transmission Type : 2.4GHz
• Polar Pattern : Omnidirectional
• Frequency Response : 20Hz-16kHz
• SNR : 77 dB
• Sensitivity : -42 dB
• Sampling Rate : 48kHz
• Bit Depth : 16bit
• Transmission Range : 50m(without obstacle)
• RF Output Power : 6dbm
• TX’s Battery Life : 10 hours
• Battery Capacity : 95mAh
• Charging Port : USB-C
• Dimensions : TX:52×17.5×16.1 mm, RXU/RXD : 46×26.2x10mm
• Weight TX : 8.5g(0.30 oz), RXU/RXD : 5g(0.18 oz)

Features：

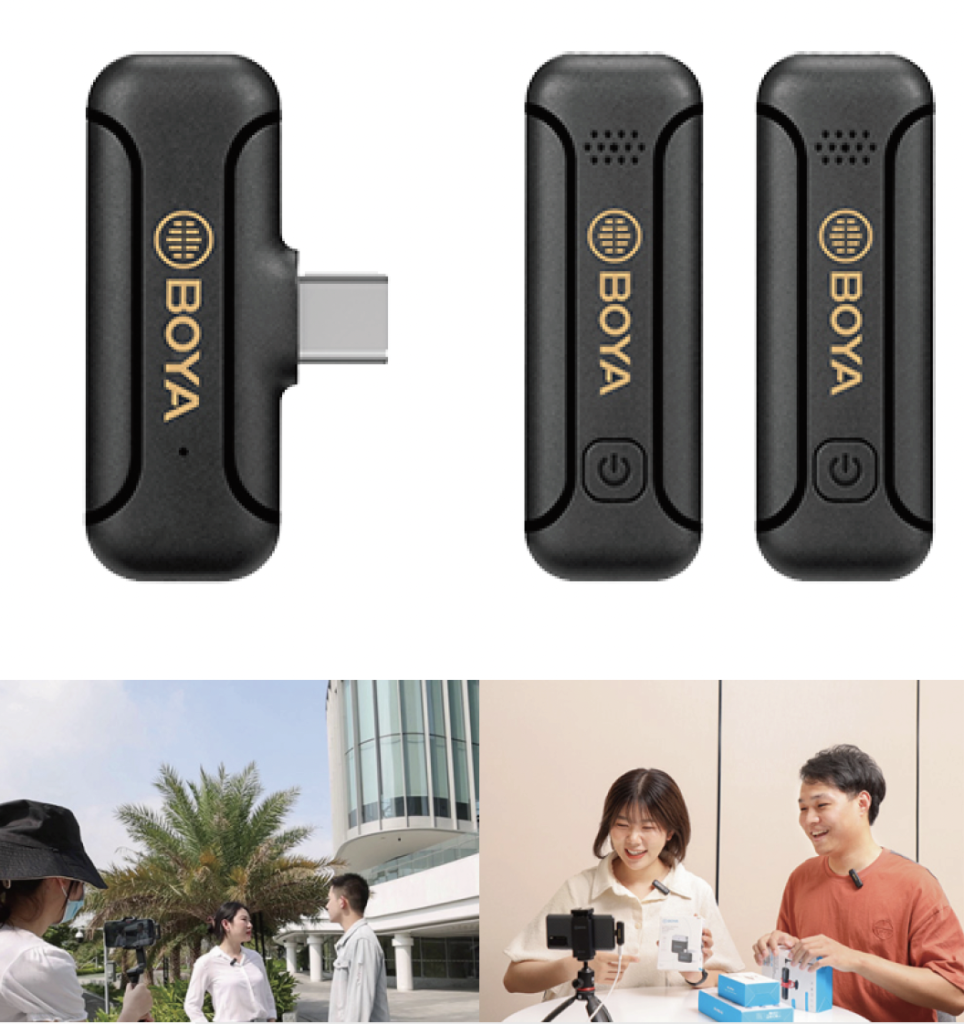

• 2.4GHz dual-channel wireless microphone system
• Ultracompact and portable
• Compatible with devices with USB-C ports
• Omnidirection built-in mic for 360° sound pickup
• Selectable noise cancellation
• Automatic pairing & plug and play
• RXU’s Type-C port supports charging for external devices during use
• TX’s built-in rechargeable battery provides up to 10-hour runtime
• 50m operating range

Specifications :

• Transmission Type : 2.4GHz
• Polar Pattern : Omnidirectional
• Frequency Response : 20Hz-16kHz
• SNR : 77dB
• Sensitivity : -42dB
• Sampling Rate : 48kHz
• Bit Depth : 16bit
• Transmission Range : 50m(without obstacle)
• RF Output Power : 6dbm
• TX’s Battery Life : 10 hours
• Battery Capacity : 95mAh
• Charging Port : USB-C
• Dimensions : TX:52×17.5×15.6mm
• RXU/RXD : 46×26.2×9mm
• Weight : TX:8.5g(0.30 oz), RXU/RXD : 5g(0.18 oz)

Features：

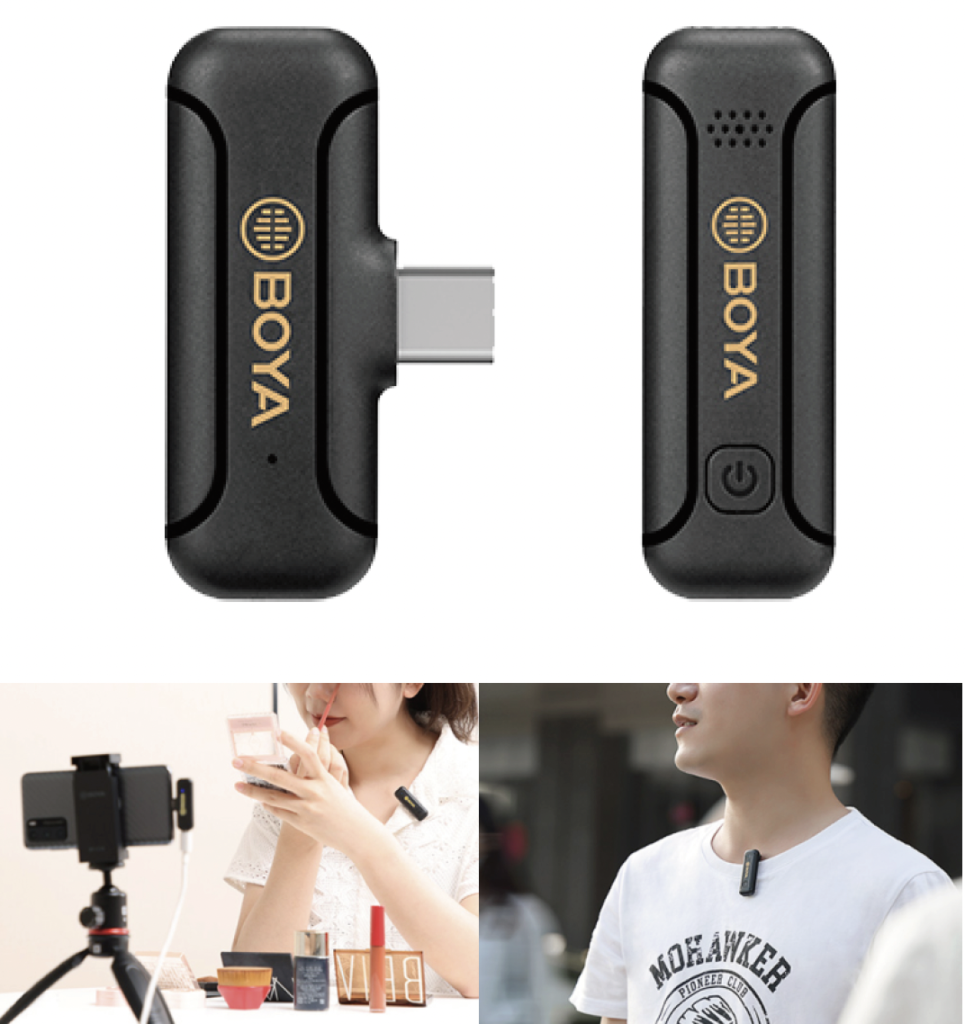

• 2.4GHz wireless microphone system
• Ultracompact and portable
• Compatible with devices with USB-C ports
• Omnidirection built-in mic for 360° sound pickup
• Selectable noise cancellation
• Automatic pairing & plug and play
• RXU’s Type-C port supports charging for external devices during use
• TX’s built-in rechargeable battery provides up to 10-hour run time
• 50m operating range

Specifications :

• Transmission Type : 2.4GHz
• Polar Pattern : Omnidirectional
• Frequency Response : 20Hz-16kHz
• SNR : 77 dB
• Sensitivity : -42 dB
• Sampling Rate : 48kHz
• Bit Depth :16bit
• Transmission Range : 50m (without obstacle)
• RF Output Power : 6dbm
• TX’s Battery Life : 10 hours
• Battery Capacity : 95mAh
• Charging Port : USB-C
• Dimensions :TX:52×17.5×16.1 mm
• RXU/RXD : 46×26.2x10mm
• Weight :TX: 8.5g(0.30 oz), RXU/RXD : 5g(0.18 oz)

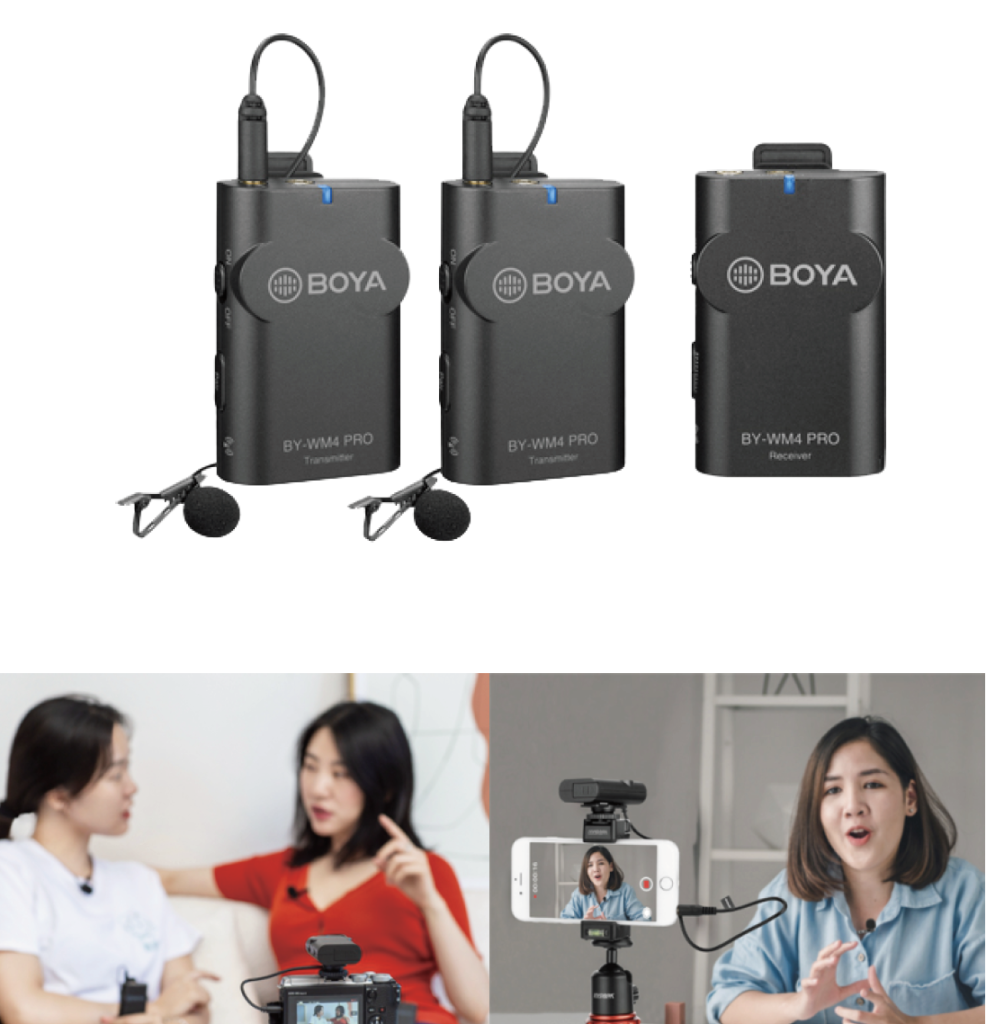

Features：

• Compatible with smartphone, DSLR, consumer camcorders and PCs etc.
• Ideal for video, podcast, and mobile journalism applications etc.
• 2.4GHz digital transmission technology.
• Two Transmitter and one dual-channel Receiver.
• Line input jack on transmitter for digital audio input.
• Headphone jack on receiver for real-time monitoring.
• Up to 60m (197ft) operation range without obstacle.
• Powered by two AAA batteries.
• Omnidirectional lavalier microphones, zipper bag, standard camera shoe mount and clips included.

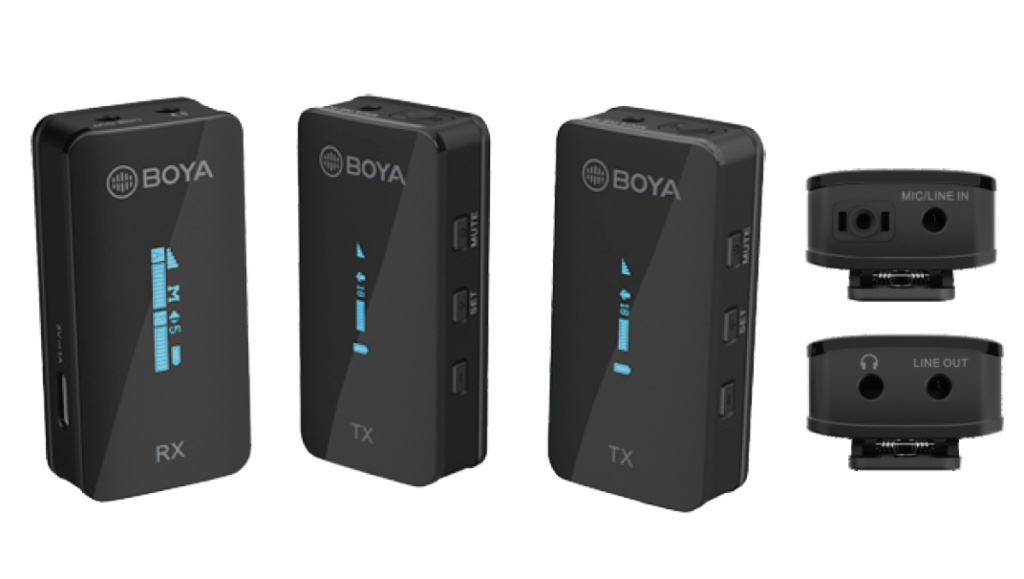

Features：

• Ideal for two-person vlog, YouTube video, live streaming, interview, recording, etc.
• Compatible with DSLR, mirrorless camera, smartphone, and computer devices.
• 2.4GHz wireless dual channel signal transmission technology.
• Hi-Fi and low-noise audio processing and delivering system.
• Built with easy-to read, vivid, and informative OLED display.
• Built-in omnidirectional microphone and lavalier microphones on transmitter.
• Headphone output jack on receiver for real-time monitoring.
• Stereo and mono outputs are available and switchable on receiver.
• Built-in Li-ion batteries for 7h use on transmitter and 6.5h use on receiver.
• Up to 100m (328ft) operation range without obstacles.

Specifications :

Transmitter

• Transmission Type : 2.4GHz Digital Frequency
• Modulation : GFSK
• Operating Range (without obstacle) : Up to 328ft (100m)
• RF Output Power : ＜10mW
• Polar Pattern : Omnidirectional
• Frequency Response : 50Hz-18KHz
• Maximum SPL
• Built-in Microphone : 120dB SPL
• Lavalier Microphone : 110dB SPL

Sensitivity

• Built-in Microphone : -39dB
• Lavalier Microphone : -39dB
• SNR : > 84dB

Power Requirements

• Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
• Built-in Battery Life
• Approx. 7 hours
• Antenna : PIFA Antenna

Audio Inputs :

• 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
• Weight : Approx. 32g(1.13oz)
• Dimensions : 62.1×31.6×16.5mm
• Operating Temperature : –10°C to 50°C
• Storage Temperature : –20°C to +55°C

Receiver

• Transmission Type : 2.4GHz Digital Frequency
• Modulation : GFSK
• Operating Range (without obstacle) : Up to 328ft (100m)
• Audio Output Connector
• 3.5mm Headphone Jack
• 3.5mm TRS Output Jack
• Audio Output Level : –60 dBV to -20dBV

Power Requirements

• Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
• Built-in Battery Life
• Approx. 6.5 hours

• Antenna : PIFA Antenna
• Weight : Approx. 32g(1.13oz)
• Dimensions : 62.1×31.6×16.5mm
• Operating Temperature : –10°C to 50°C
• Storage Temperature : –20°C to +55°C
